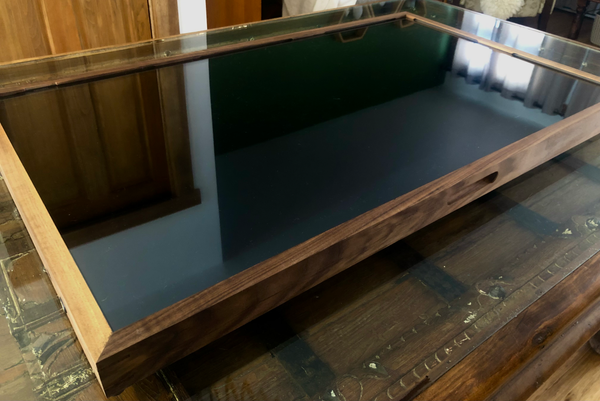

SLIM Gen2 Digital Map Case

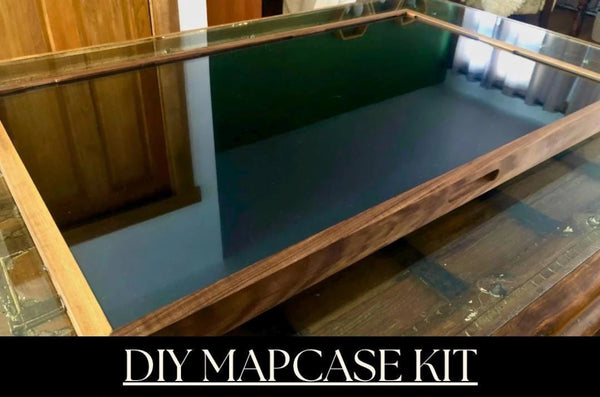

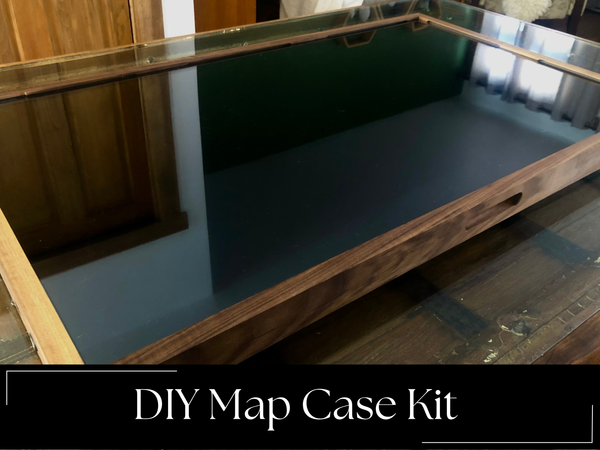

DIY GEN2 Digital Map Case KIT
Map Case Accessories

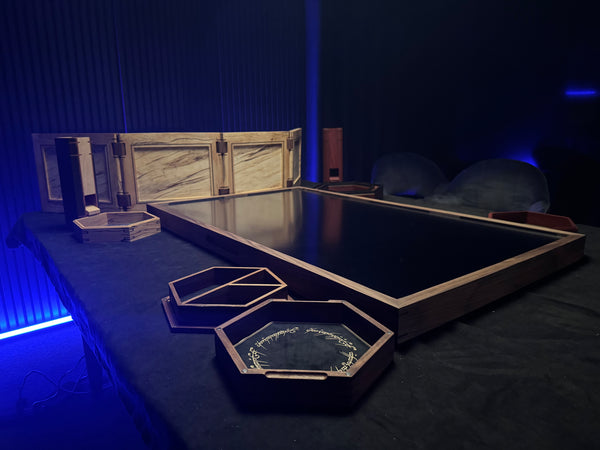

Anti Glare Plexiglass

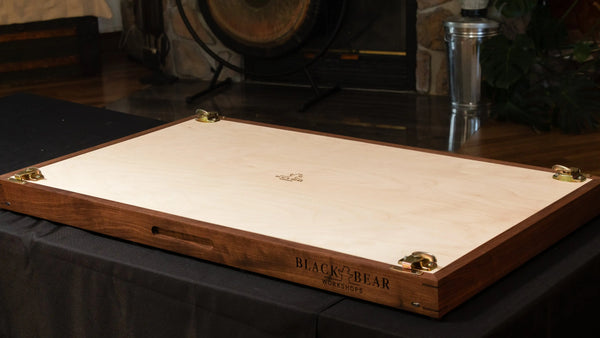

Cover Protection

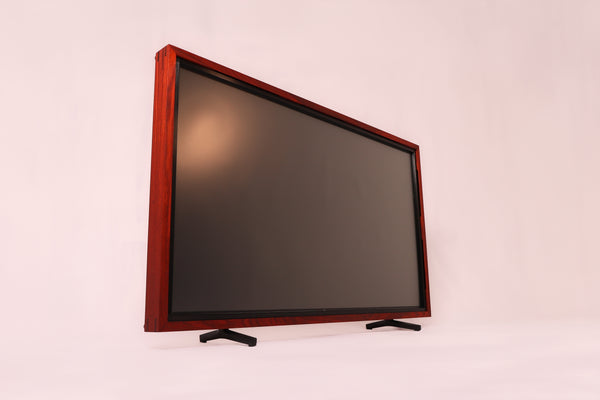

TV Legs Integration

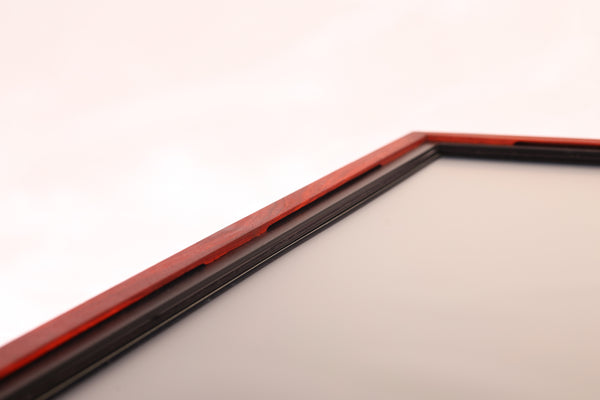

IR Touchscreen Overlay
Breathable Map Case
Passive Heat Dissipation

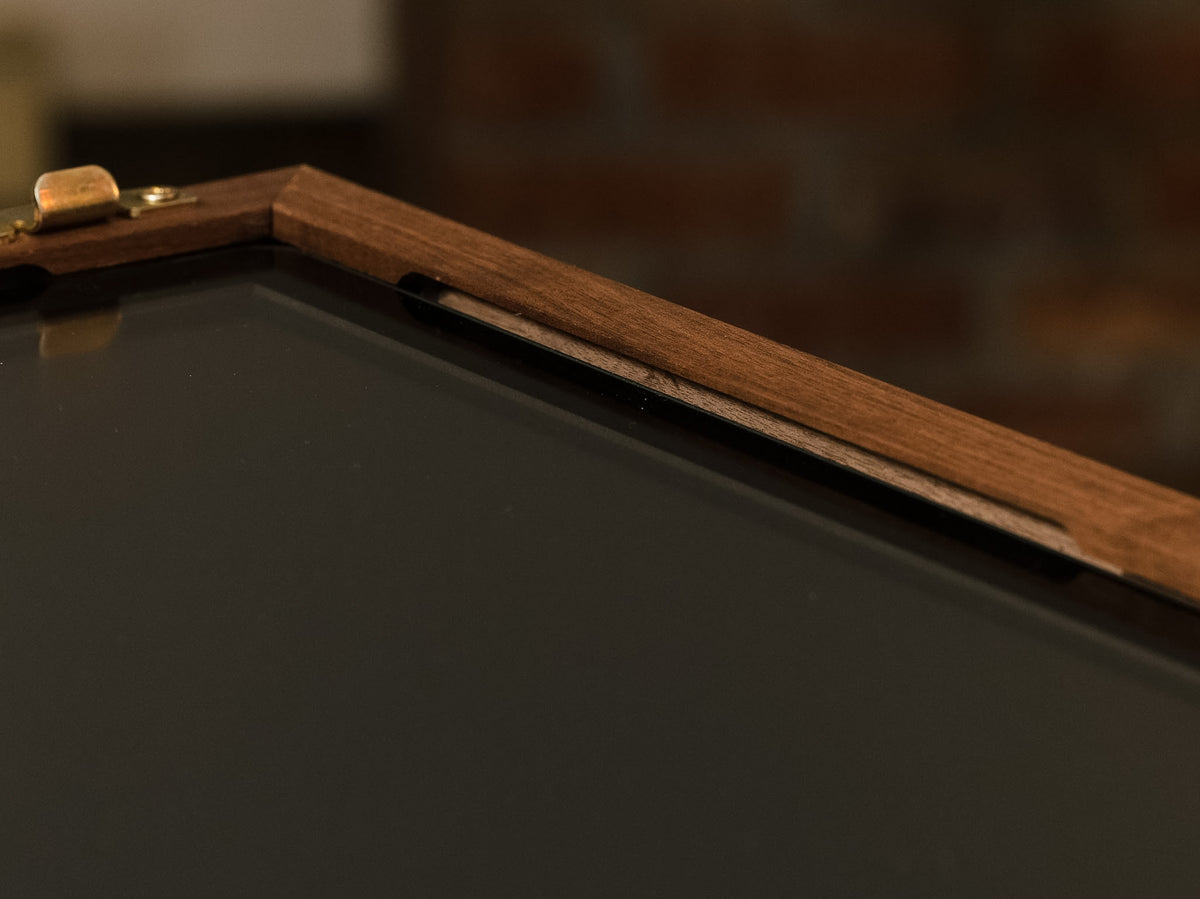

Chimney effect allowing heat to escape vertically via ventilation slots cut into 85% of the inside perimeter. These vents allow heat to escape upwards.
Breathable map Case
Mechanical Ventilation
Mechanical ventilation that pressurises the interior of the Digital Map Case with fresh air and up to 700 cm² opening beneath the map case to optimise screen cooling. Combined to the ventilation slots, the risk associate to the Heatbox issue is eradicated!
Focused on ergonomics

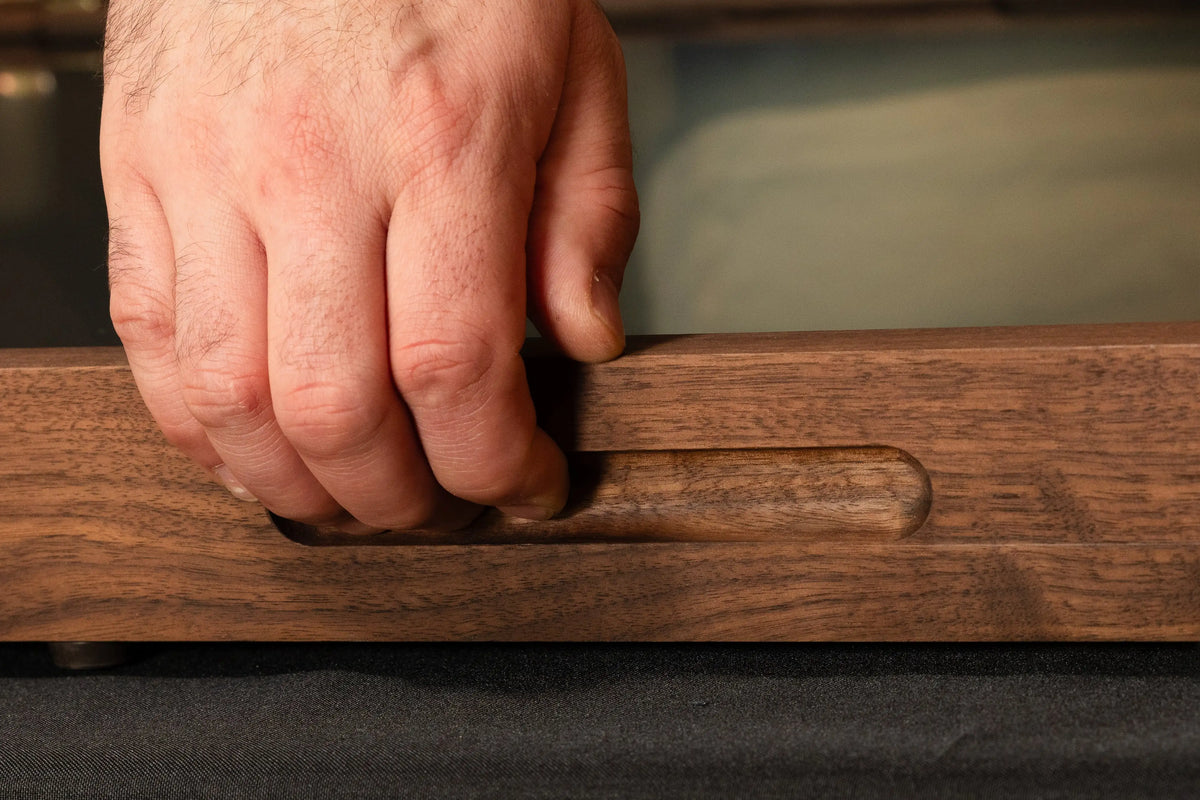

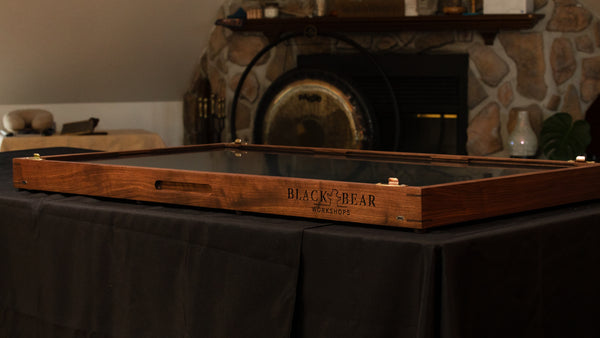

The handles, which are recessed into the frame, maintain a minimalist aesthetic whilst allowing for easy handling without the need for handles that protrude from the frame. This design choice saves valuable space on the table.
Very slim for its class. At 6.35 cm high, it strikes an excellent balance between airflow beneath the screen and a viewing angle that isn’t too narrow for gamers who prefer to remain seated.
Built-to-last
Reinfored Joint

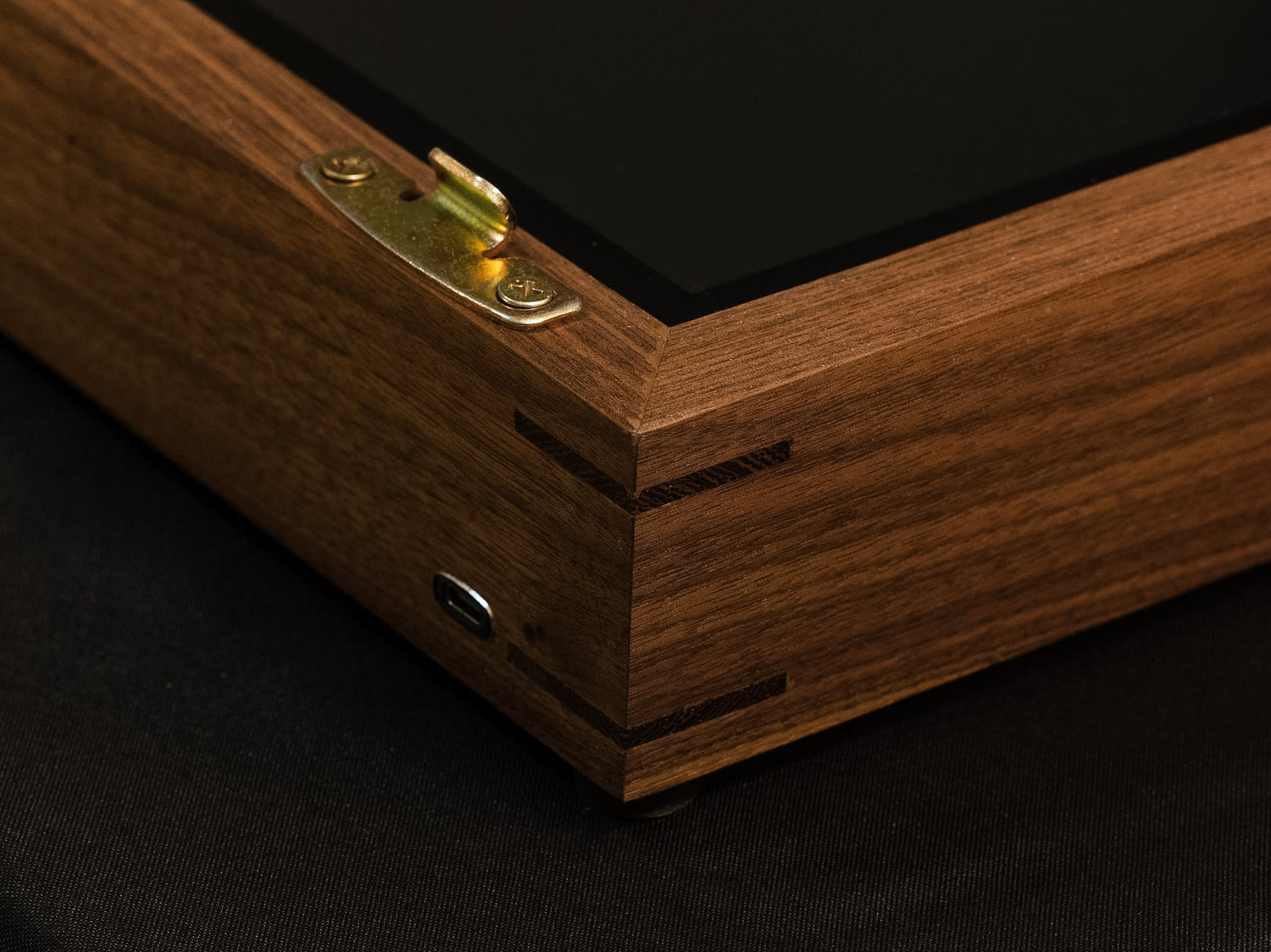

The mitre joints are reinforced with wenge, which provides a striking contrast and enhances the strength of the corners. The contact surface for the wood glue is quadrupled by adding a side joint that bonds the long sides of the fibres, creating a highly durable bounds.
Built-to-last
Uncoupling Screen from the Outside Shell

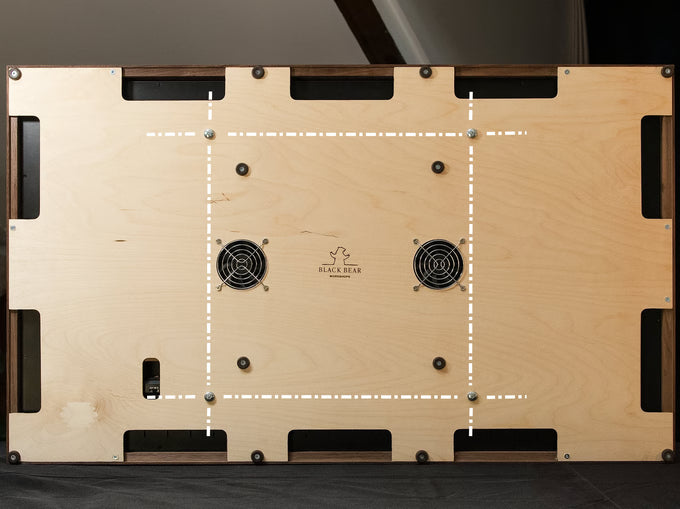

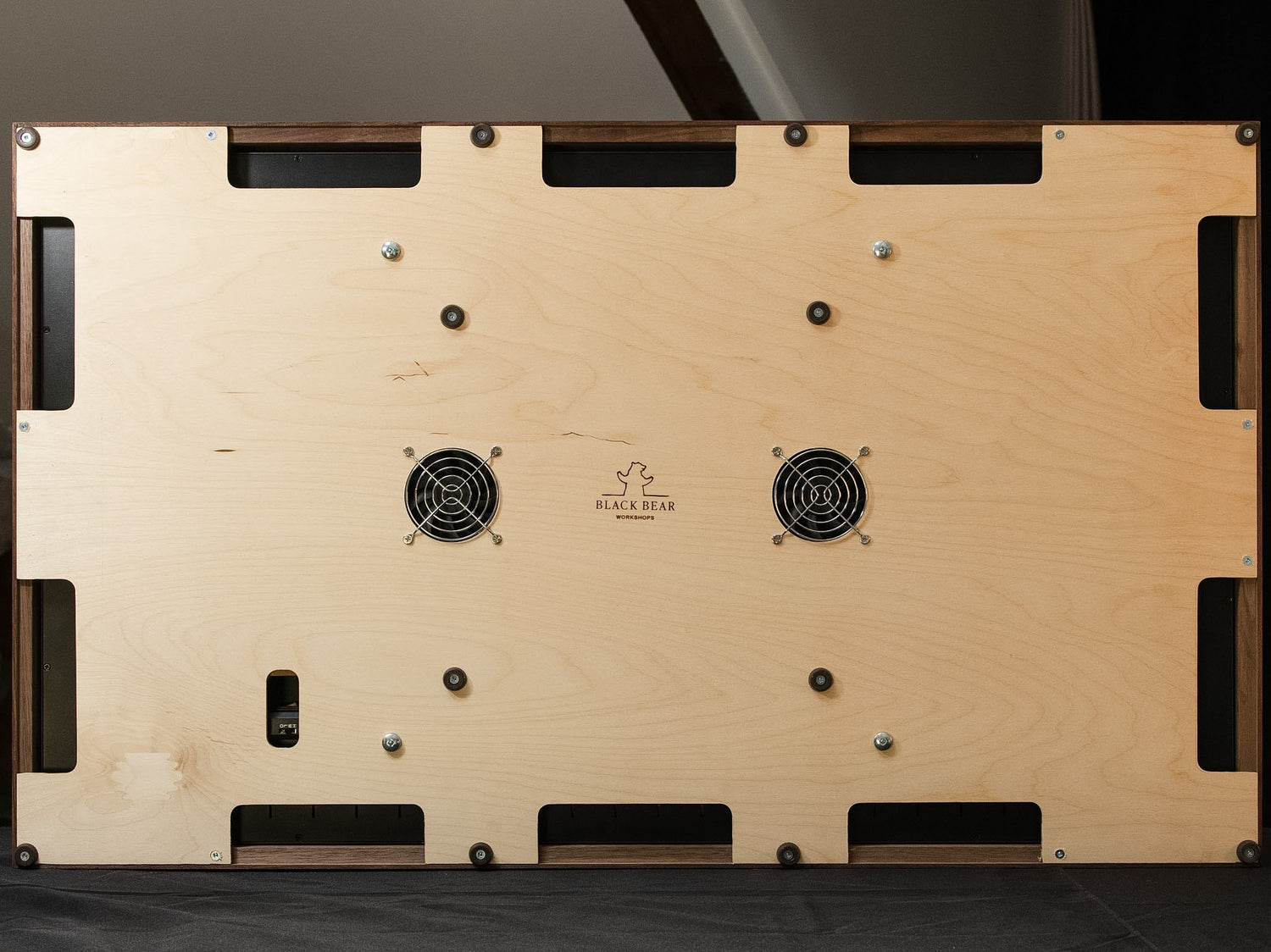

The rear panel, reinforcing the Map Case as a bracing pannel, holds the screen securely in place at the centre of the MapCase cavity thanks to the screw-fixing system, which is designed to be compatible with the VESA mounting system. The screen cannot moved relativelly to the Map Case.

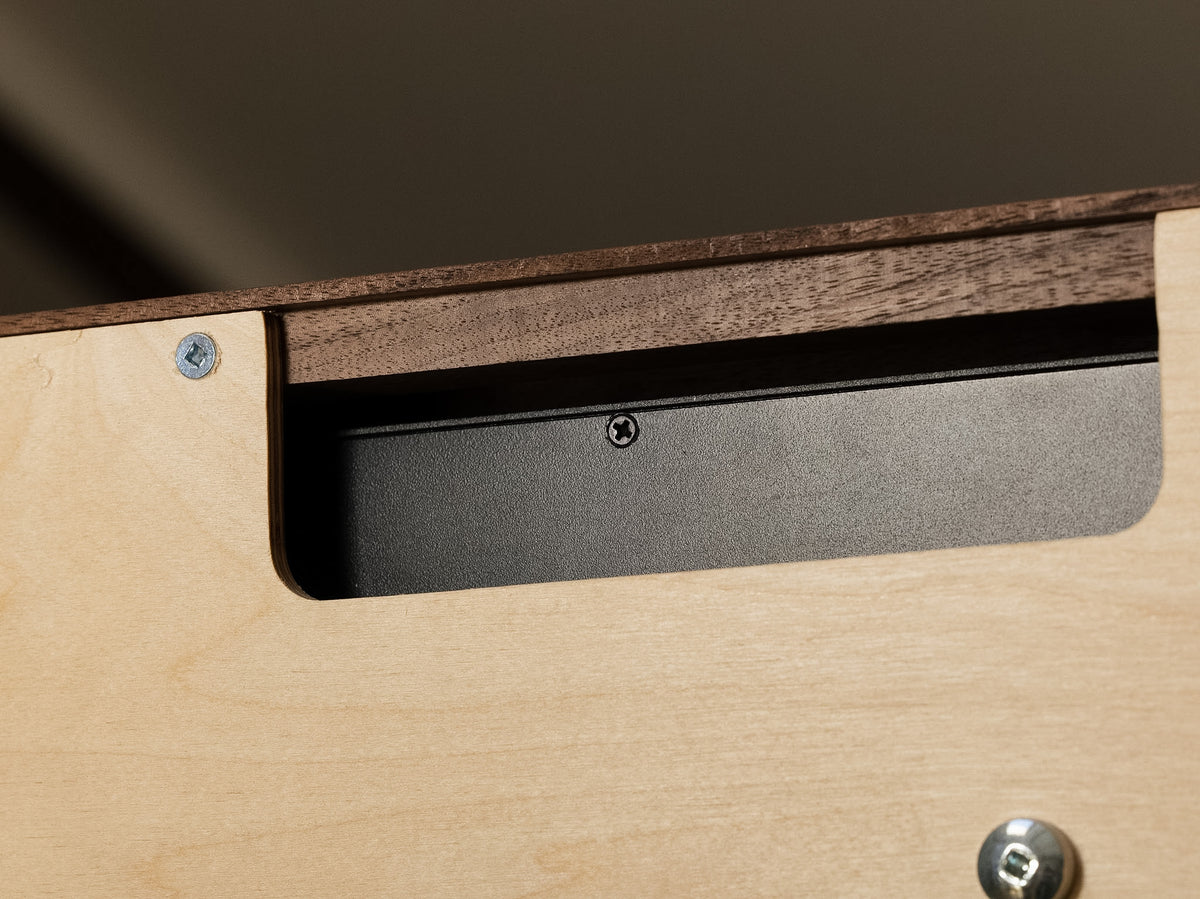

A 4 mm gap surrounds the screen to prevent it from coming into direct contact with the MapCase frame. This stops any energy generated by an impact from being directly transmitted to the screen, much like the moat surrounding a castle
The Screen is locked to the rear pannel. The rear pannel is locked to the wooden enclosure. The construction is sturdy, robust and designed to act as a shell.
Tech savvy
Enhanced Touchscreen

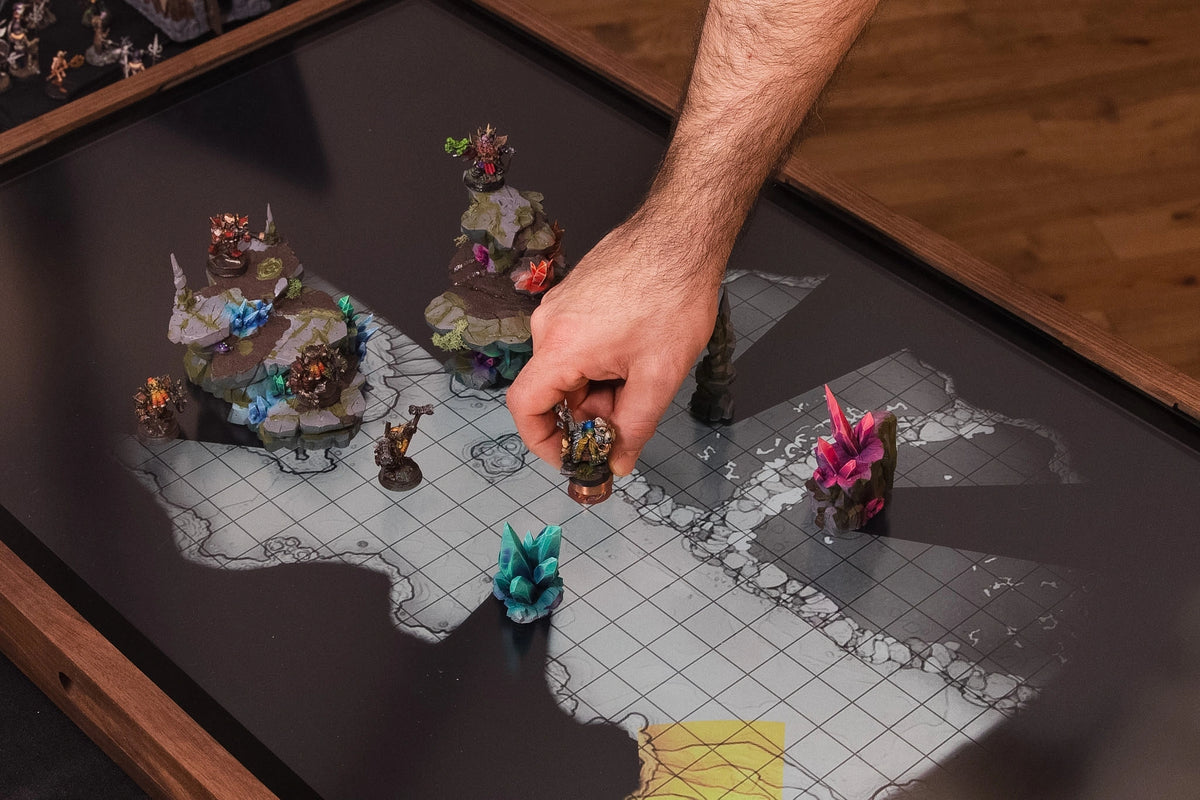

PCAP Touchscreen is now replacing the IR touchscreen technology, overcoming the limitations that prevented players from using an unlimited number of miniatures and terrains.
Miniatures can now be bunched together in the chaos of battle without losing their ability to be tracked individually.
Tech savvy

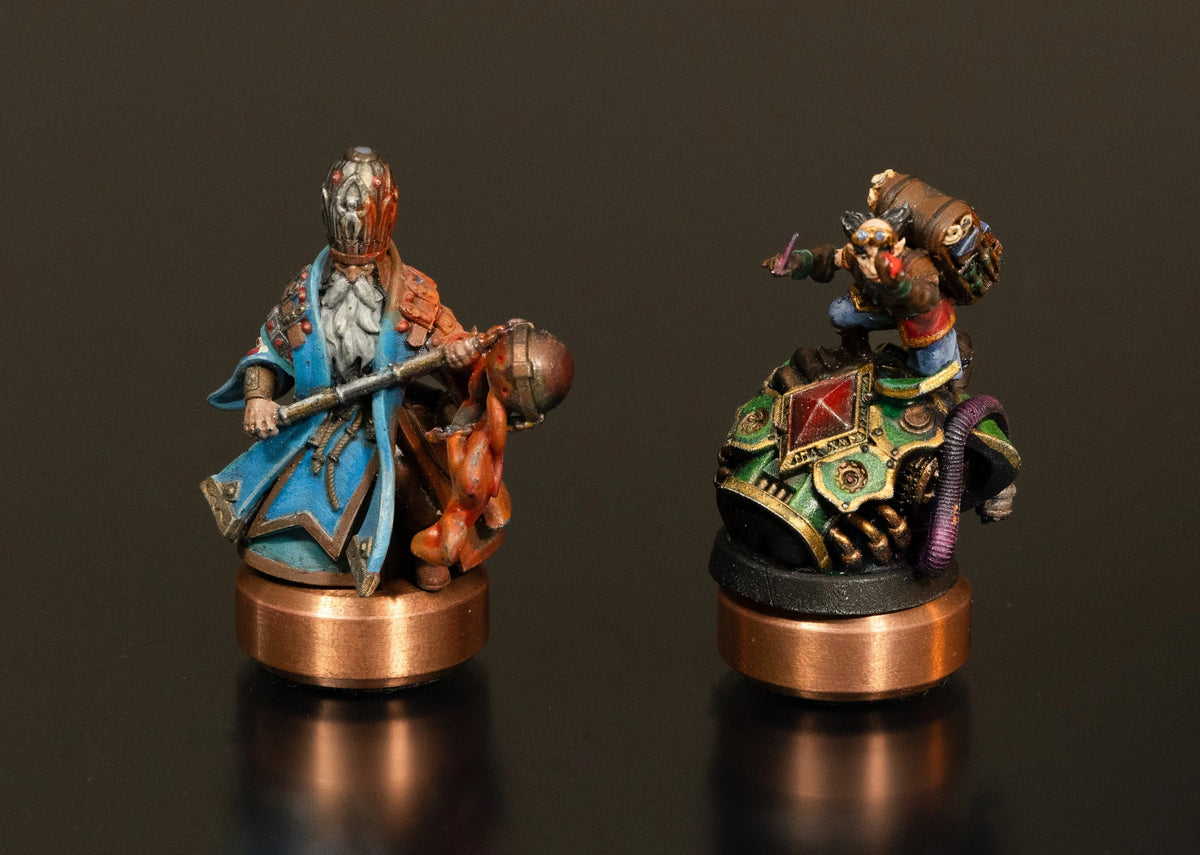

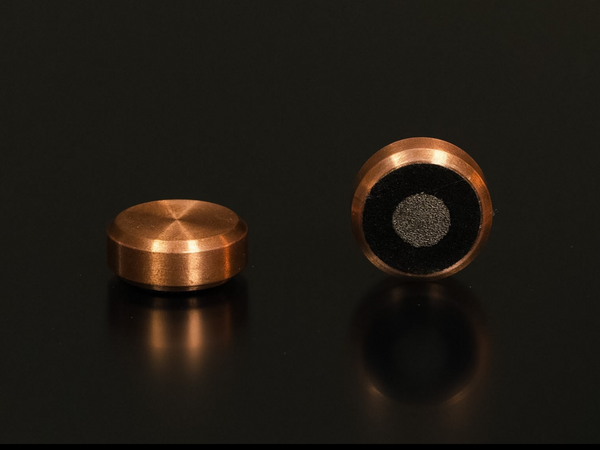

Conductive Hero Base
The simplicity of the Hero base’s design is matched only by its reliability and minimalist aesthetic. Consisting of a solid copper disc, the base contains no mechanical components that might wear out over time. The only additions are a piece of conductive felt and an insulating felt, creating an synergic ecosysteme with PCAP tech and the right VTT.
